Table saws VMAX-ELITE 80 Laser

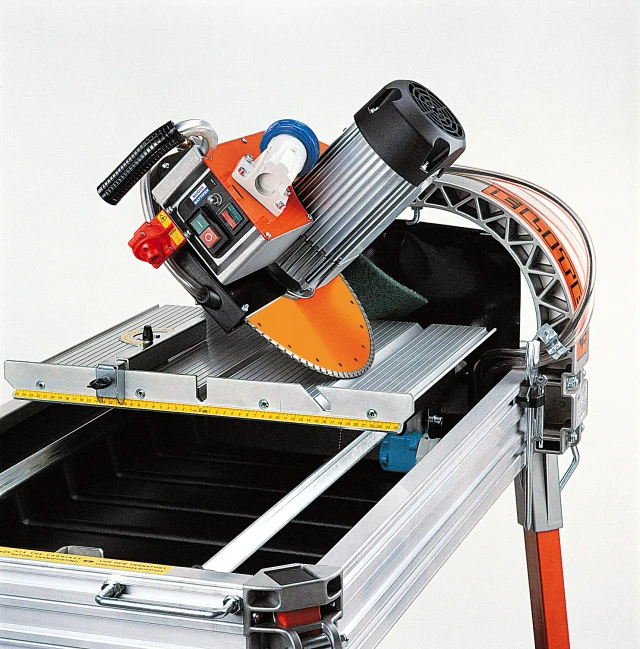

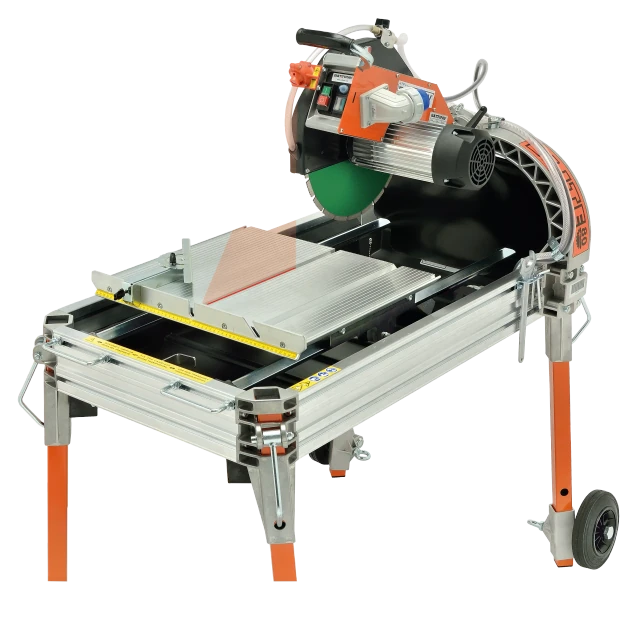

ELITE 80 Laser table saw – Professional table saw – Lightweight. Strong. Precise. The ELITE 80 Laser is a powerful and versatile professional stone saw for daily use on construction sites, ideal for cutting concrete, masonry, bricks, natural stone, granite, marble and porcelain stoneware. Designed for diamond blades with a diameter of 350 mm, it offers a cutting length of up to 800 mm and a maximum cutting depth of 110 mm, allowing even large formats to be cut with ease. The robust water spray system keeps the diamond blade optimally cooled, significantly increasing blade life and enabling a precise, clean cutting edge. Equipped with a laser guidance system and a tilting cutting head unit, it delivers accurate straight and mitre cuts (up to 45°) reliably and quickly. The compact design with a sliding work surface, adjustable legs and transport wheels makes the ELITE 80 Laser not only robust and durable, but also easy to move and use – ideal for professional tradespeople and construction professionals who expect precise, durable and versatile cutting technology.

Use

Wet

Materials

Marble, Clinker, Artificial stone, Sandstone, Tiles, Natural stone, Concrete, Granite, Ceramic, Brick, Reinforced concrete, PVC,PE,PP

Diameter

350 mm

Bore

25.4 mm

Cutting width

800 mm

Max. speed

2800 U/min

Max. Schnitttiefe

110mm

Max. Schnittlänge

800mm

Gewicht

73Kg

Abmessung der Maschine

1240 x 770 x 1300mm

Leistung

3 PS / 2.2 KW / 9 A

Motorkühlung

Luft

Motortyp

Einphasig 230 V 50 Hz

Laserinstrument

Ja / Rot

Wasserpumpe

P2

Wassertank

min. 19 bis max. 25 Liter

Verstellbarer Sägekopf

Ja / 45°

Optional

Transporträder vorne drehbar, Tischverbreiterung

Item number

410.43195
