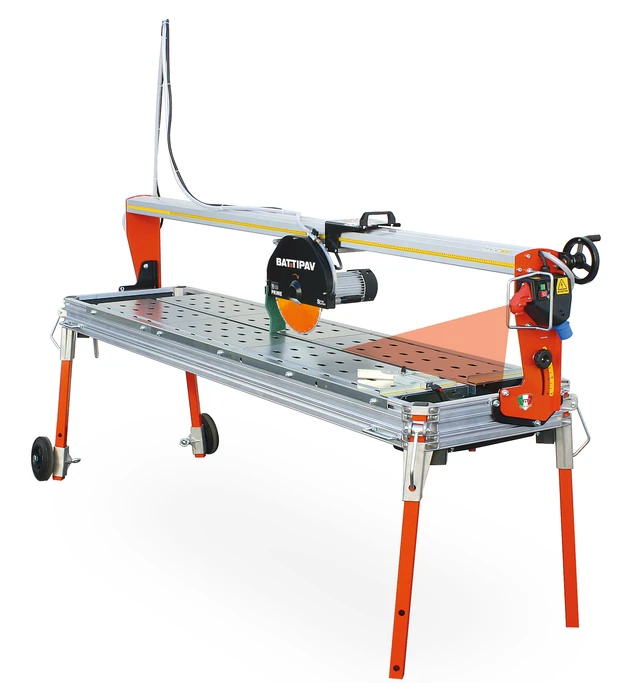

VMAX PRIME 120 Laser bridge saw

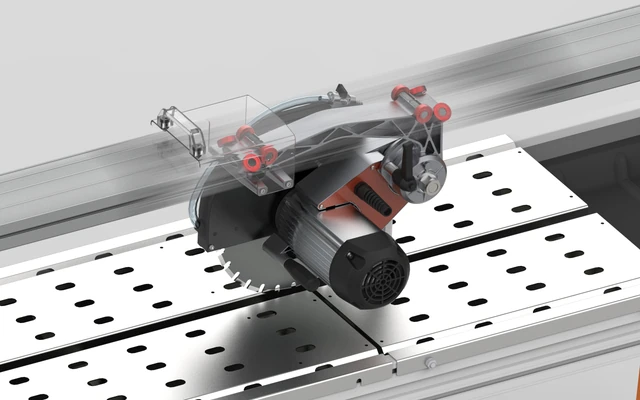

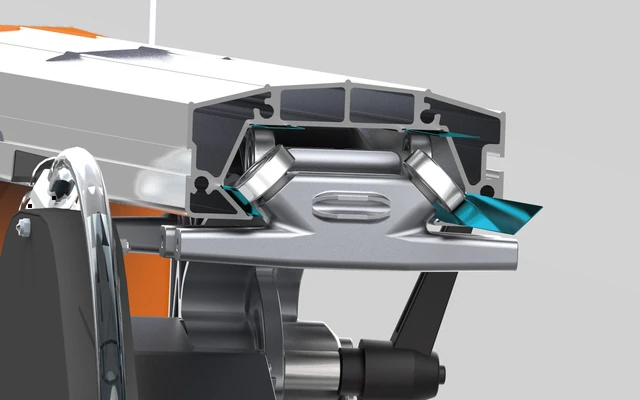

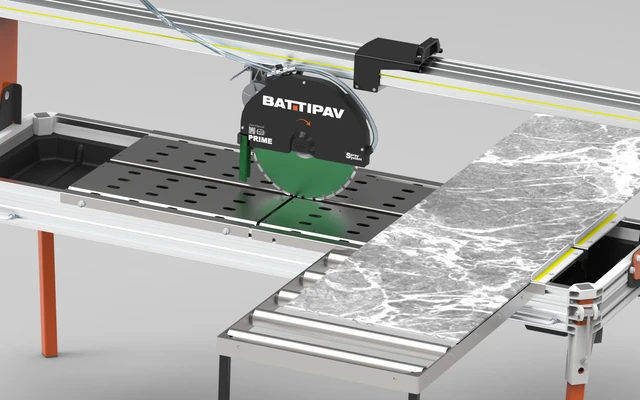

PRIME 120 Laser bridge saw – the professional bridge saw for precise and versatile cuts on site. The PRIME 120 Laser is a powerful bridge saw specially developed for professional use in construction and stone processing. With a maximum cutting length of 1.200 mm and a cutting depth of up to 110 mm, it is ideal for cutting concrete, masonry, bricks, natural stone, granite, marble and large-format slabs – diagonal cuts up to approx. 845 x 845 mm are also possible. It features a robust, precise design with a laser guidance system, an adjustable goniometer fence and a sturdy aluminium carriage guide. This ensures reliable, accurate straight and mitre cuts (0°–45°). Equipped with a 3 metric hp/2,2 kW motor (230 V/50 Hz), a water cooling system, thermal protection and transport wheels, the PRIME 120 Laser bridge saw offers high cutting performance, convenience and durability, making it perfectly suited to demanding construction and renovation work. Thanks to its ease of use, robust construction and high reliability, this bridge saw is an excellent choice for tradespeople, tilers and stonemasons who expect precise cuts and professional results.

Use

Wet

Materials

Marble, Clinker, Artificial stone, Sandstone, Tiles, Natural stone, Concrete, Granite, Ceramic, Brick, PVC,PE,PP, Reinforced concrete

Diameter

350 mm

Bore

25.4 mm

Cutting width

1200 mm

Max. speed

2800 U/min

Max. Schnitttiefe

110 mm

Max. Schnittlänge

1200 mm

Gewicht

105 Kg

Abmessungen der Maschine

1980 x 800x 1305 mm

Leistung

3 PS / 2.2 KW 9 A

Motorkühlung

Luft

Motortyp

Einphasig 230 V 50 Hz

Laserinstrument

Ja / Rot

Wasserpumpe

P2

Wassertank

min. 26 bis max. 41 Liter

Verstellbarer Sägekopf

Ja / 45°

Optional

Transporträder vorne drehbar, Tischverbreiterung, Griffbügel

Item number

410.43355
